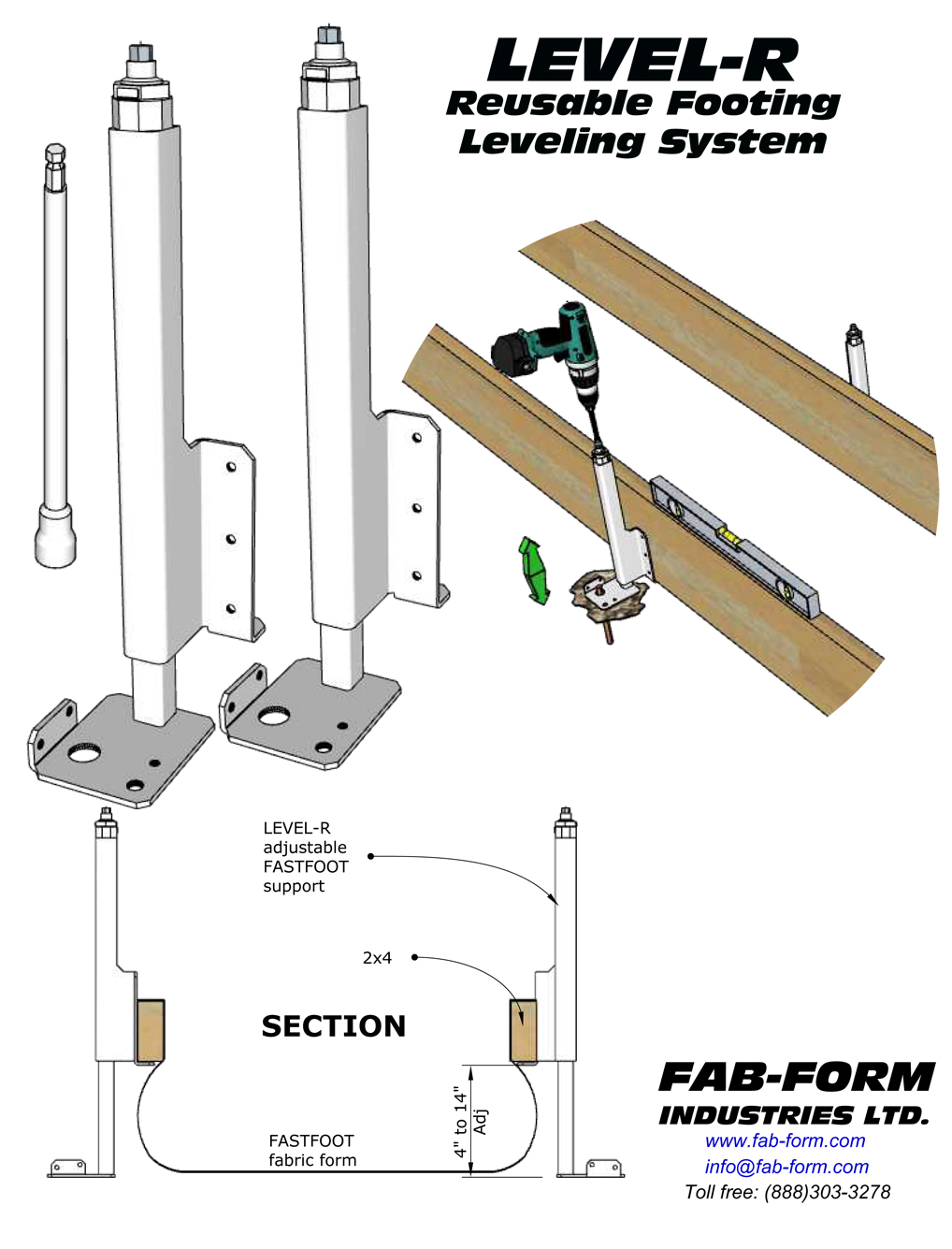

Level-R footing brackets enable the contractor to quickly adjust the height of his footing forming lumber using an electric drill. This enables easy and accurate height adjustment by one person, reducing labor cost significantly. Level-Rs are typically placed 12’ on center with conventional stakes driven between.

Level-Rs are used with Fastfoot to aid in installation.

Features:

Zinc plating to prevent corrosion
Acme threads for long life
Reverse thread to enable the removal of the driver for lubrication
Height adjustment from 0” to 11”, so with a 2x4 edge form, maximum footing height is 15”
Rapid adjustment with electric drill
Packaging: 8 Level-Rs per Mid Zote
Weight: 5.0 pounds each, 10 pounds per pair.
Hex driver provided in each Mid Zote.
